H+90

• Self-supporting structure in AISI 304 steel, “Scotch Brite” finish.
• Hob in AISI 304 20/10, h 75 mm, with joint between modules by means of a steel strip without the use of sealants.
• All functional components are easy to access for quick maintenance.
• Ergonomic AISI 304 stainless steel knobs with moulded stud on control panel to prevent water infiltration.

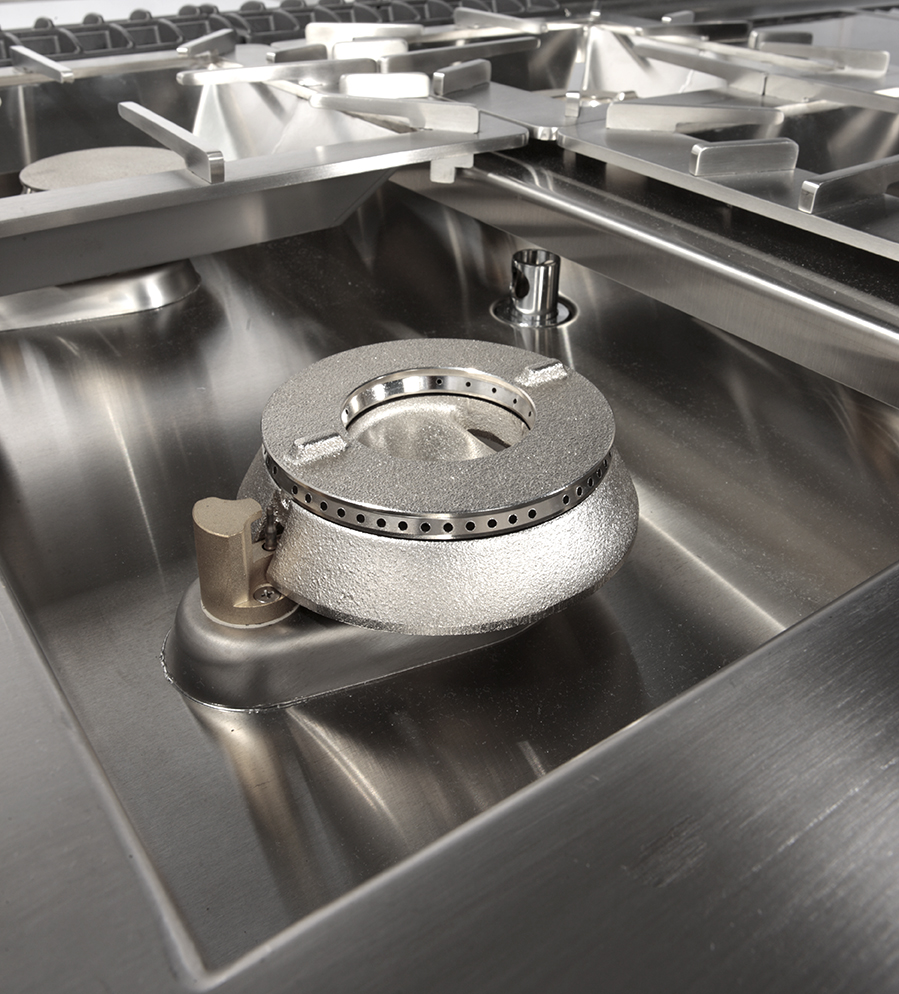

• Rounded tank complete with water filling dispenser and drain overflow. Equipment designed to work with water in the hob to keep grease in suspension and ensure easy cleaning.
• Grill in thick AISI 304, designed for a fully exploitable worktop, making it practical and safe to move large or small pans.
• Nozzles according to type of gas required, complete with interchangeable sets for the other gases.

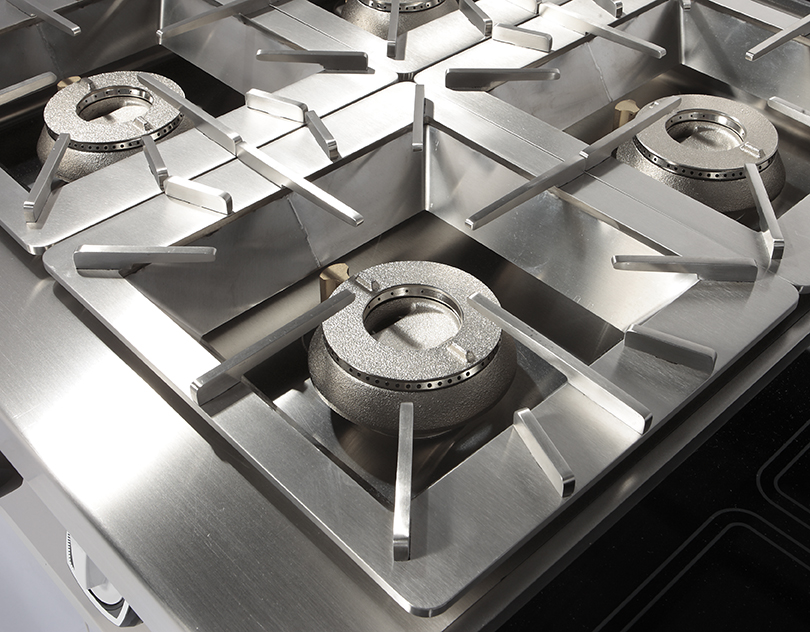

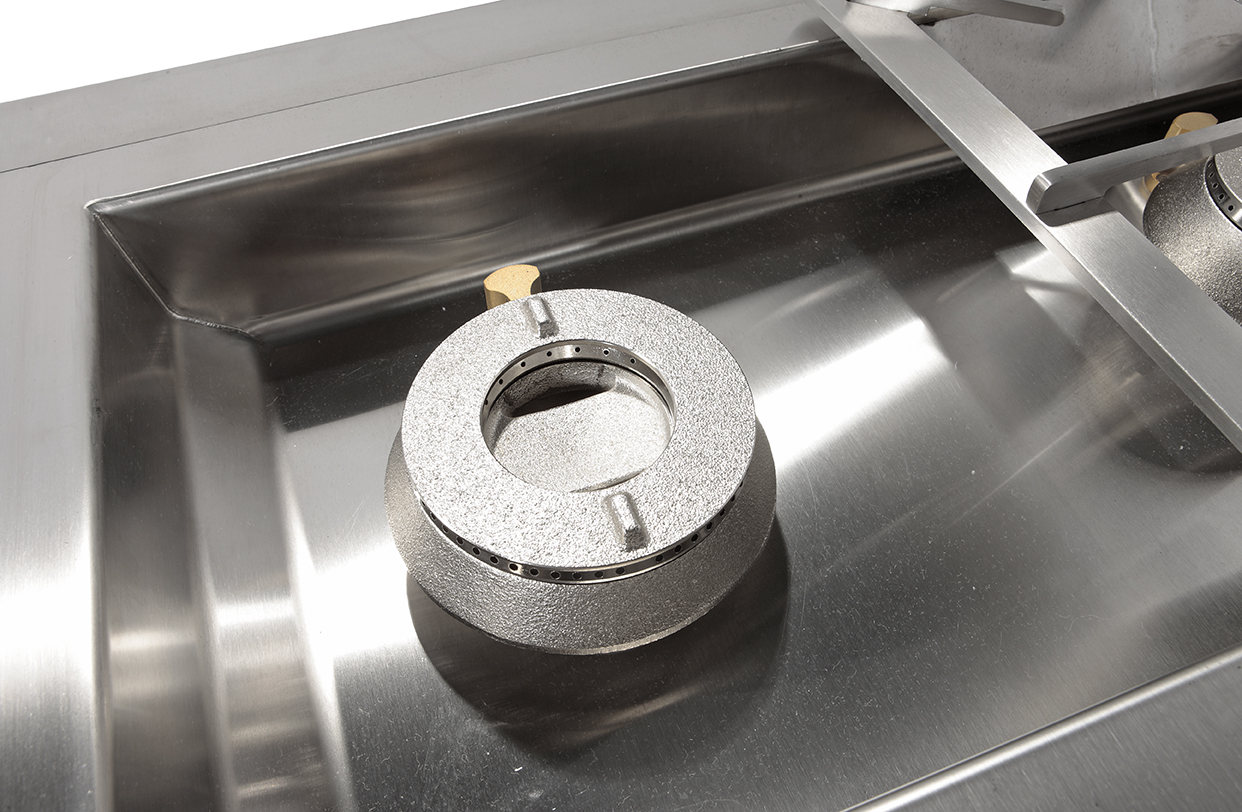

• Cast-iron burners and flame spreaders, high efficiency with minimum consumption and lowest CO² emissions.
• Pilot lights protected to avoid infiltration of dirt and frequent maintenance.

In cabinet versions

• AISI 304 structure with rounded bottom for maximum hygiene, hollow core hinged doors with magnetic non-return stop.

In gas oven versions:

• AISI 430 gas oven insulated with ceramic fibre.
• Oven capacity GN 2/1.
• Highly insulated double-walled door, sealed with a moulded labyrinth system, black enamelled interior, steel high sealing springs, thick moulded steel base plate.
• 1 x 8 kW multi-gas burner.
• Adjustable temperature from 50-300°C.
• Piezo ignition.

In XL gas oven versions:

• AISI 430 gas oven insulated with ceramic fibre.
• Oven capacity dim. 910x715h300.
• Highly insulated double-walled door, sealed with a moulded labyrinth system, black enamelled interior, steel high sealing springs, thick moulded steel base plate.
• 1 x 9.8 kW multi-gas burner.
• Adjustable temperature from 50-300°C.
• Piezo ignition.

In electric oven versions:

• AISI 430 electric oven insulated with ceramic fibre.
• Oven capacity GN 2/1.
• Highly insulated double-walled door, sealed with a moulded labyrinth system, black enamelled interior, steel high sealing springs, thick moulded steel base plate.
• 1 x 6.55 kW armoured heating elements.
• Adjustable temperature from 50-300°C.
• Two independent base and upper thermostats, safety thermostat.
• AISI 304 feet, adjustable.
• IPX5 water degree of protection.
